Description

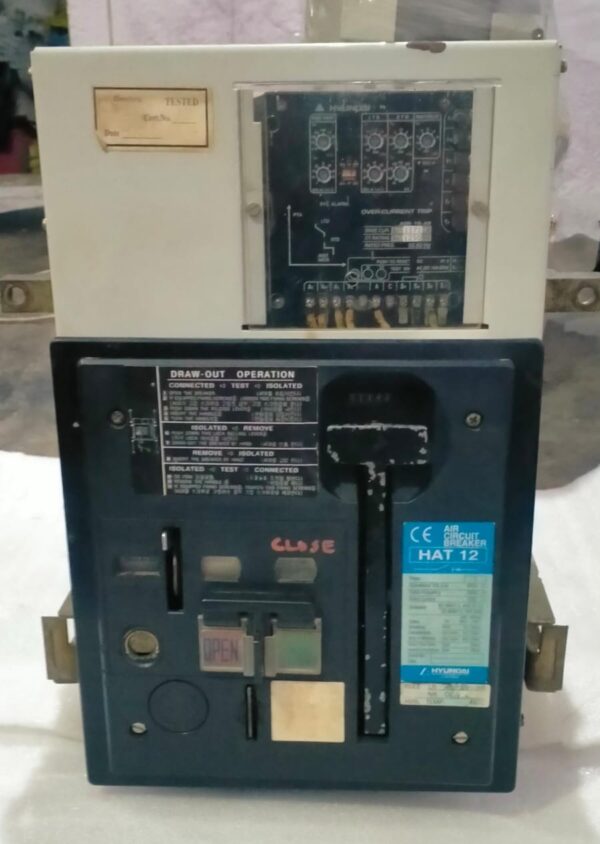

Hyundai HAT-12 Air Circuit Breaker

Introducing the Hyundai HAT-12 Air Circuit Breaker, engineered by Hyundai Heavy Industries Co. Ltd to meet the demanding requirements of industrial and marine applications. This robust 3-pole breaker is designed to operate flawlessly at 660V AC with a current rating of 1250A, ensuring reliable performance even in high-power environments.

Compliant with the IEC 947-2 standard, the Hyundai HAT-12 Air Circuit Breaker guarantees safety and efficiency in every operation. Its utilization category B classification underscores its suitability for a wide range of industrial settings.

Let’s delve into its technical specifications:

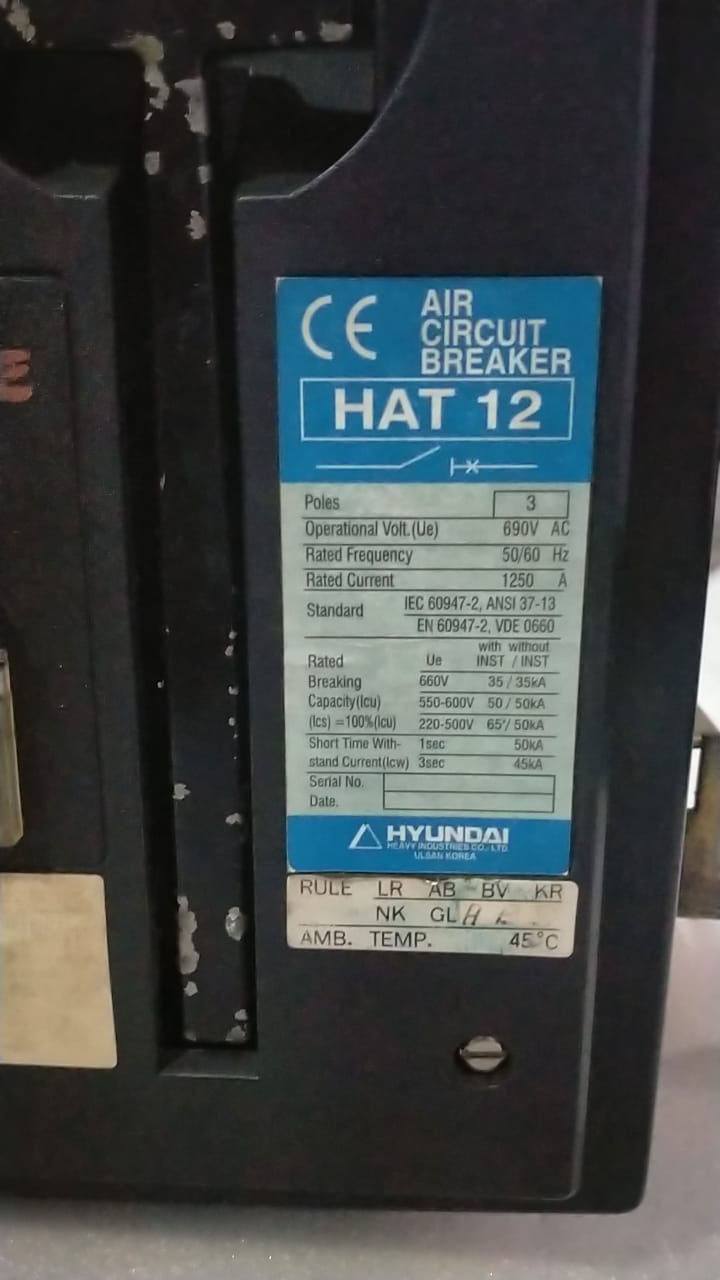

Operational Voltage (UE): 660V AC
Rated Frequency: 50/60 Hz
Rated Current: 1250A
Rate Breaking:
– UE: 660V
– ICU: 35kA
Capacity (ICU):
– UE: 550-600V
– ICU: 50kA
Short Time Withstand Current (ICS): 100% of ICU
– UE: 220-500V
– ICU: 65kA
Short Time Withstand (1 sec): Stands up to 50kA
Standard Current (ICW): 50kA
Ambient Temperature: Rated for operation up to 45°C
Over Current Trip: Equipped with AOR-1S-AL protection
Base Current (IO): 800A
CT Rating (ICT): 1250/5A
Rated Frequency: 50/60Hz

Packaged with care, each product undergoes quality packing to ensure safe and damage-free delivery, providing peace of mind to our valued customers.

At IB Supplier, we take pride in being a leading stockiest and exporter of marine and industrial equipment. Our unwavering commitment to customer satisfaction drives us to deliver top-notch products and services consistently. Feel free to reach out to us with any feedback or inquiries; we’re here to serve you.

Trust the Hyundai HAT-12 Air Circuit Breaker from IB Supplier for unparalleled performance and reliability in your industrial and marine applications.
