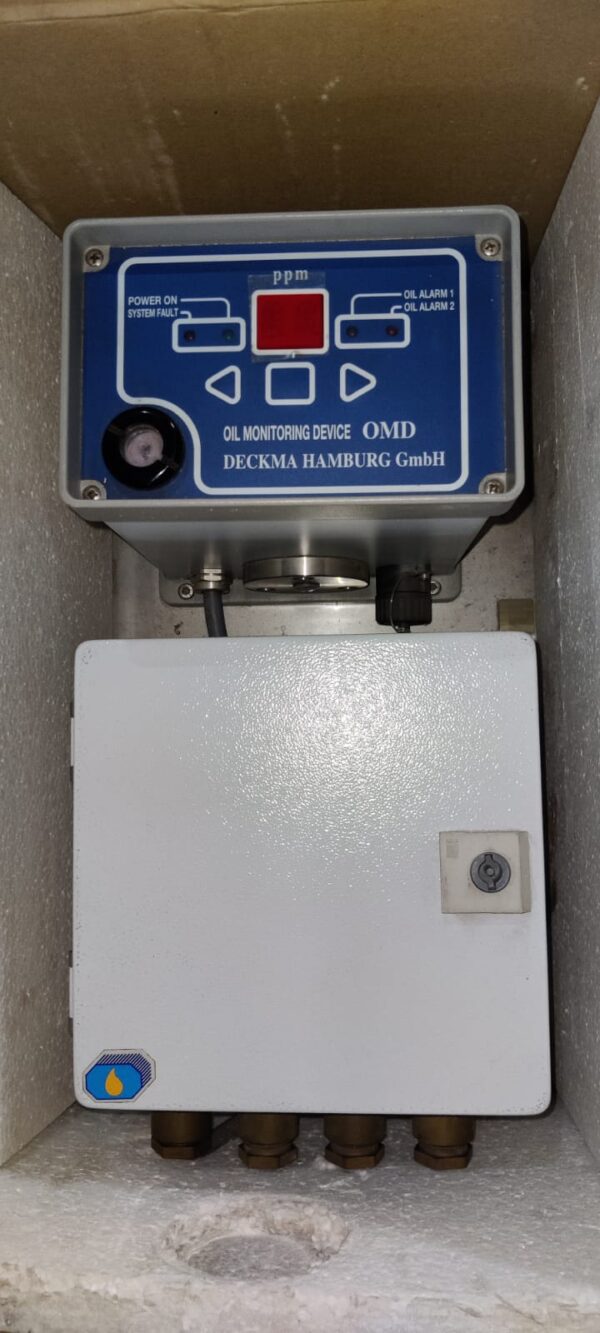

Deckma OMD-11 15 PPM Bilge Alarm Monitor

Description

Deckma OMD-11 15 PPM Bilge Alarm Monitor

The Deckma OMD-11 Oil Content Meter is a reliable and proven unit developed by Deckma Hamburg GmbH. Specifically designed to complement 15 ppm Oily Water Separator Systems, it ensures effective monitoring and compliance with environmental regulations regarding oil content in bilge water.

Key Technical Features:

Measurement Range: Covers the range from 0 to 30 ppm, with trend indication up to 50 ppm for proactive monitoring.

Accuracy: Complies with IMO MEPC.60 (33) standards, ensuring precise oil content measurement.

Degree of Protection: Maintains IP 65 degree of protection, safeguarding the unit from external elements.

Output Signal: Provides a selectable 0 (4) – 20 mA output signal, allowing for seamless integration with monitoring systems.

Sample Temperature: Operates efficiently within the temperature range of +1° to 60°C, ensuring accurate readings in various conditions.
Alarm Settings: Factory set at 15 ppm, with adjustable alarm operating points ranging from 2-15 ppm for flexibility.

Alarm Delay: Customizable alarm delay settings from 2 to 20 seconds, adapting to specific operational needs.

Power Supply: Runs on a 24 Volt AC/DC power supply, with the flexibility for other voltages based on specific requirements.

The Deckma OMD-11 15 PPM Bilge Alarm Monitor stands as a trusted tool for ensuring compliance and effective monitoring of oil content in bilge water. Its technical precision and adaptable settings make it an asset for marine operations, aiding in environmental responsibility and regulatory adherence.

For inquiries, further details, or to acquire the Deckma OMD-11, please contact us.
